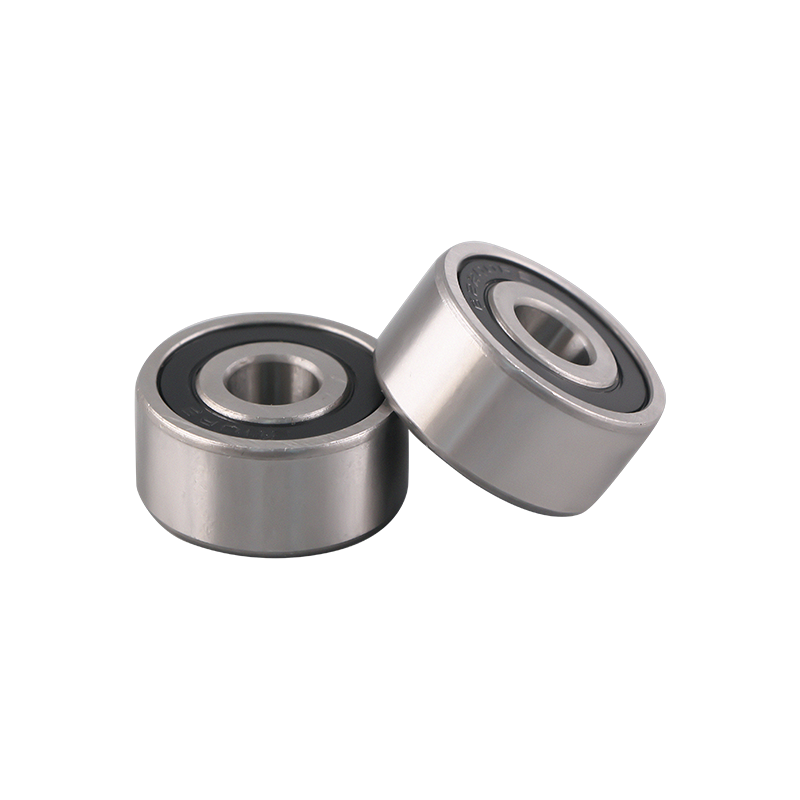

62200 2RS High Speed Thicken Deep Groove Ball Bearing for Sale Motor Bearing Size 10x30x14mm

Specification

MODEL	SIZE					BASIC RATED LOAD		WEIGHT (reference) kg
	INNER DIAMETER(d) mm	OUTER DIAMETER(D) mm	WIDTH		CHAMFER(r) mm	DYNAMIC Cr N	STATIC Cor N
	INNER DIAMETER(d) mm	OUTER DIAMETER(D) mm	OPEN TYPE mm	SHIELD TYPE mm	CHAMFER(r) mm	DYNAMIC Cr N	STATIC Cor N
62000	10	26	10	10	0.3	4160	1780	0.0220
62001	12	28	10	10	0.3	5110	2380	0.0260
62002	15	32	11	11	0.3	5590	2840	0.0390
62003	17	35	12	12	0.3	6000	3250	0.0450
62200	10	30	14	14	0.6	5110	2380	0.0400
62201	12	32	14	14	0.6	6180	3060	0.0460
62202	15	35	14	14	0.6	7450	3700	0.0560
62203	17	40	16	16	0.6	9560	4780	0.0850
62204	20	47	18	18	1	12840	6650	0.1280
62205	25	52	18	18	1	14020	7930	0.1460
62206	30	62	20	20	1	19460	11310	0.2420
62207	35	72	23	23	1.1	25670	15300	0.3450
62300	10	35	17	17	0.6	7640	3470	0.0600
62301	12	37	17	17	1	9700	4190	0.0740
62302	15	42	17	17	1	11400	5430	0.1100
62303	17	47	19	19	1	13580	6580	0.1490
62304	20	52	21	21	1.1	15940	7880	0.1970
62305	25	62	24	24	1.1	22380	11490	0.3200
62306	30	72	27	27	1.1	27000	15200	0.4850
62800	10	19	6	6	0.3	1590	750	0.0059
62803	17	26	6	6	0.3	2130	1360	0.0089
62805	25	37	8	8	0.3	3680	2630	0.0250
63800	10	19	7	7	0.3	1590	750	0.0074
63801	12	21	7	7	0.3	1910	1040	0.0085
63802	15	24	7	7	0.3	2070	1250	0.0100
63803	17	26	7	7	0.3	2130	1360	0.0110
63804	20	32	10	10	0.3	3480	2230	0.0240
63204	20	47	20.6	20.6	1	12840	6650	0.1500
63207	35	72	27	27	1.1	25670	15300	0.4350
63000	10	26	12	12	0.3	4160	1780	0.0250
63001	12	28	12	12	0.3	5110	1280	0.0290
63002	15	32	13	13	0.3	5590	2840	0.0420
63003	17	35	14	14	0.3	6000	3250	0.0510
63004	20	42	16	16	0.6	9390	5020	0.0880
63005	25	47	16	16	0.6	10060	5860	0.1000
63006	30	55	19	19	1	11900	7460	0.1590
63007	35	62	20	20	1	16210	10420	0.2100
63008	40	68	21	21	1	17030	11700	0.2590

Precision Class

Standard	Precision Class
GB/T307.1	P0	P6	P5	P4
IS0492	CLASS0	CLASS6	CLASS5	CLASS4
AFBMA STD.20	ABEC1	ABEC3	ABEC5	ABEC7

Bearing Material

Chrome Steel: Chemical Composition of Chrome Steel，According to customer needs, stainless steel bearing materials avaiable

Steel No	Chemical Composition%
Steel No	C	Si	Mn	P	S	Cr
GCr15	0.95-1.05	0.15-0.35	0.20-0.40	≤0.027	≤0.02	1.30-1.65

The Interchange of Chrome Steel No.

Country	China	ISO	U.S.A	Germany	Japan	Sweden
Bearings Steel No.	GCr15	683/VXⅡ	(AISI)52100	(DIN)100Cr6	（Jis）SUJ2	SKF3

Professional manufacture of 62200 2RS High Speed Thicken Deep Groove Ball Bearing for Sale Motor Bearing Size 10x30x14mm.

Years Of Experience

We are an international custom 62200 2RS High Speed Thicken Deep Groove Ball Bearing for Sale Motor Bearing Size 10x30x14mm suppliers and OEM/ODM 62200 2RS High Speed Thicken Deep Groove Ball Bearing for Sale Motor Bearing Size 10x30x14mm company, specialized in the manufacturing deep groove ball bearing. Not only advanced automated production equipment, strict enterprise management, excellent talent team, and strong technology, rigorous process, but also we have a large number of precision grinding machine, mainly use high-quality bearing steel "GCr15" as raw material, and low-carbon alloy steel as attached. The first inspection, Operator self-inspection, inspect all the sizes; Inspect sampling, factory finished product testing and other processes, custom 62200 2RS High Speed Thicken Deep Groove Ball Bearing for Sale Motor Bearing Size 10x30x14mm quality has been Strict controlled. Our quality goal is the pursuit of excellence, achieve customer satisfaction.
We have professional design, development and manufacture of 62200 2RS High Speed Thicken Deep Groove Ball Bearing for Sale Motor Bearing Size 10x30x14mm and deep groove ball bearings. Our leading products are widely used in micro-electromechanical, household appliances, electric fans, washing machines, motorcycles, electric vehicles, medical equipment, sports equipment, textile and agricultural machinery, and process decorations, sliding doors and windows, children′s toys, trolleys, Package, skates, scooters, fitness equipment, various types of machinery sector!
