Home / Product / 6700 Series Deep Groove Ball Bearing / 6708 ZZ/2RS Open 40x50x6mm Full Size Low Price High Quality Bearings For Electric Machinery Deep Groove Ball Bearing

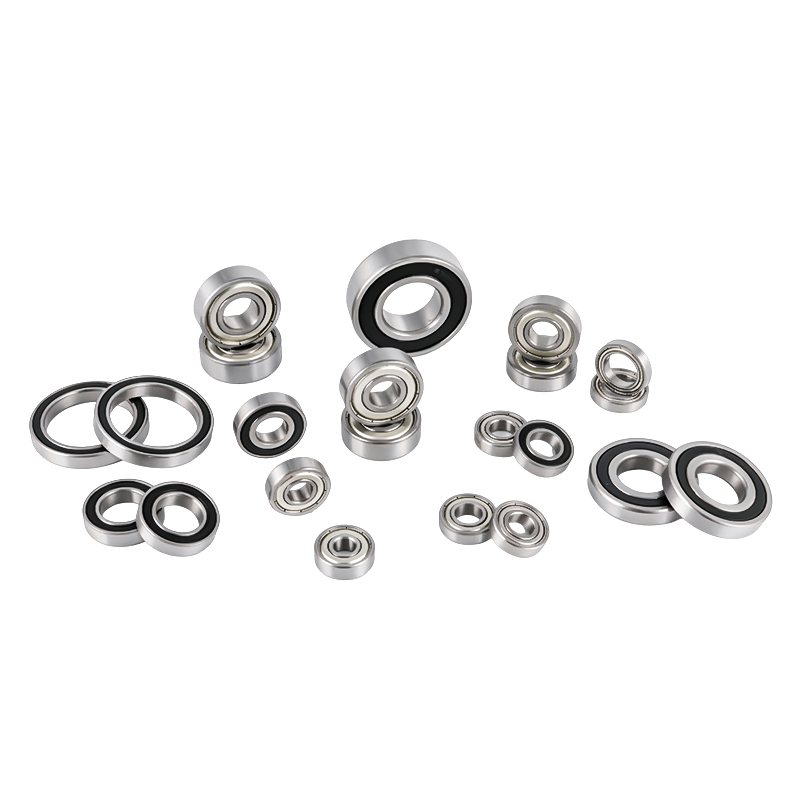

6708 ZZ/2RS Open 40x50x6mm Full Size Low Price High Quality Bearings For Electric Machinery Deep Groove Ball Bearing

Specification

MODEL	SIZE					BASIC RATED LOAD		WEIGHT (reference) kg
	INNER DIAMETER(d) mm	OUTER DIAMETER(D) mm	WIDTH		CHAMFER(r) mm	DYNAMIC Cr N	STATIC Cor N
	INNER DIAMETER(d) mm	OUTER DIAMETER(D) mm	OPEN TYPE mm	SHIELD TYPE mm	CHAMFER(r) mm	DYNAMIC Cr N	STATIC Cor N
6700	10	15	3	4	0.1	800	390	0.0019
6701	12	18	4	4	0.2	910	530	0.0031
6702	15	21	4	4	0.2	850	490	0.0036
6703	17	23	4	4	0.2	960	610	0.0040
6704	20	27	4	4	0.2	1030	720	0.0059
6705	25	32	4	4	0.2	1090	830	0.0070
6706	30	37	4	4	0.2	1170	980	0.0083
6707	35	44	5	5	0.3	1850	1630	0.0150
6708	40	50	6	6	0.3	2519	2234	0.0230

Precision Class

Standard	Precision Class
GB/T307.1	P0	P6	P5	P4
IS0492	CLASS0	CLASS6	CLASS5	CLASS4
AFBMA STD.20	ABEC1	ABEC3	ABEC5	ABEC7

Bearing Material

Chrome Steel: Chemical Composition of Chrome Steel，According to customer needs, stainless steel bearing materials avaiable

Steel No	Chemical Composition%
Steel No	C	Si	Mn	P	S	Cr
GCr15	0.95-1.05	0.15-0.35	0.20-0.40	≤0.027	≤0.02	1.30-1.65

The Interchange of Chrome Steel No.

Country	China	ISO	U.S.A	Germany	Japan	Sweden
Bearings Steel No.	GCr15	683/VXⅡ	(AISI)52100	(DIN)100Cr6	（Jis）SUJ2	SKF3

Professional manufacture of 6708 ZZ/2RS Open 40x50x6mm Full Size Low Price High Quality Bearings For Electric Machinery Deep Groove Ball Bearing.

Years Of Experience

We are an international custom 6708 ZZ/2RS Open 40x50x6mm Full Size Low Price High Quality Bearings For Electric Machinery Deep Groove Ball Bearing suppliers and OEM/ODM 6708 ZZ/2RS Open 40x50x6mm Full Size Low Price High Quality Bearings For Electric Machinery Deep Groove Ball Bearing company, specialized in the manufacturing deep groove ball bearing. Not only advanced automated production equipment, strict enterprise management, excellent talent team, and strong technology, rigorous process, but also we have a large number of precision grinding machine, mainly use high-quality bearing steel "GCr15" as raw material, and low-carbon alloy steel as attached. The first inspection, Operator self-inspection, inspect all the sizes; Inspect sampling, factory finished product testing and other processes, custom 6708 ZZ/2RS Open 40x50x6mm Full Size Low Price High Quality Bearings For Electric Machinery Deep Groove Ball Bearing quality has been Strict controlled. Our quality goal is the pursuit of excellence, achieve customer satisfaction.
We have professional design, development and manufacture of 6708 ZZ/2RS Open 40x50x6mm Full Size Low Price High Quality Bearings For Electric Machinery Deep Groove Ball Bearing and deep groove ball bearings. Our leading products are widely used in micro-electromechanical, household appliances, electric fans, washing machines, motorcycles, electric vehicles, medical equipment, sports equipment, textile and agricultural machinery, and process decorations, sliding doors and windows, children′s toys, trolleys, Package, skates, scooters, fitness equipment, various types of machinery sector!
