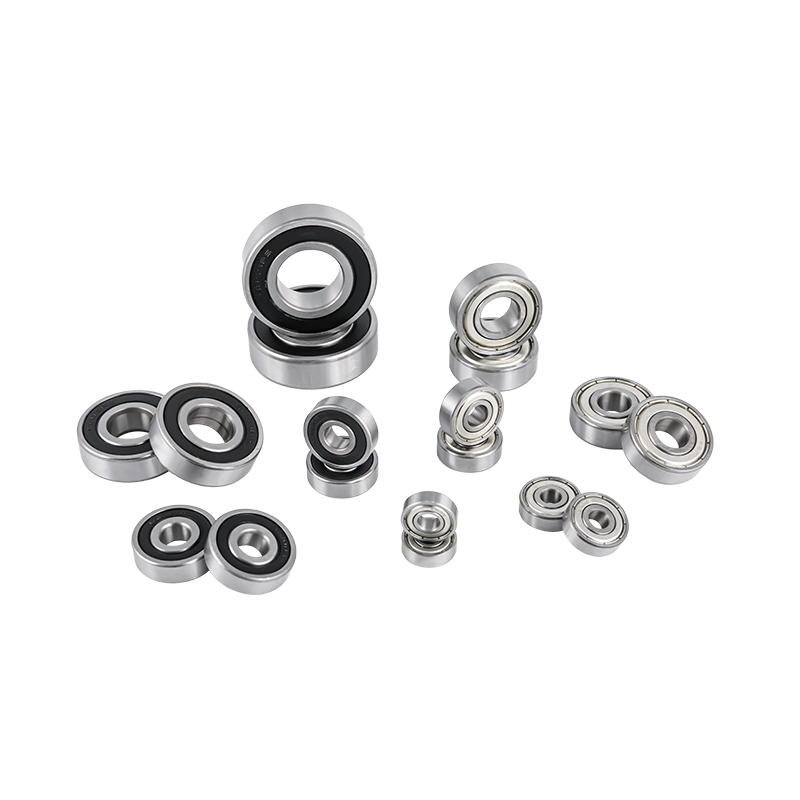

Deep Groove Ball Bearing 62 Series

Specification

MODEL	SIZE					BASIC RATED LOAD		WEIGHT (reference) kg
	INNER DIAMETER(d) mm	OUTER DIAMETER(D) mm	WIDTH		CHAMFER(r) mm	DYNAMIC Cr N	STATIC Cor N
	INNER DIAMETER(d) mm	OUTER DIAMETER(D) mm	OPEN TYPE mm	SHIELD TYPE mm	CHAMFER(r) mm	DYNAMIC Cr N	STATIC Cor N
623	3	10	4	4	0.15	640	220	0.0016
624	4	13	5	5	0.2	1150	400	0.0032
625	5	16	5	5	0.3	1880	680	0.0051
626	6	19	6	6	0.3	2800	1060	0.0086
627	7	22	7	7	0.3	3290	1360	0.0131
628	8	24	8	8	0.3	3330	1410	0.0170
629	9	26	8	8	0.3	4160	1780	0.0191
6200	10	30	9	9	0.6	5110	2380	0.0320
6201	12	32	10	10	0.6	6180	3060	0.0370
6202	15	35	11	11	0.6	7450	3700	0.0450
6203	17	40	12	12	0.6	9560	4780	0.0650
6204	20	47	14	14	1	12840	6650	0.1060
6205	25	52	15	15	1	14020	7930	0.1280
6206	30	62	16	16	1	19460	11310	0.1990
6207	35	72	17	17	1.1	25670	15300	0.2880
6208	40	80	18	18	1.1	29520	18140	0.3660
6209	45	85	19	19	1.1	32500	20400	0.4160
6210	50	90	20	20	1.1	35000	23200	0.4620
6211	55	100	21	21	1.5	43500	29200	0.6020
6212	60	110	22	22	1.5	52500	36000	0.8040
6213	65	120	23	23	1.5	57200	40100	0.9900
6214	70	125	24	24	1.5	62000	44000	1.0700
6215	75	130	25	25	1.5	66000	49500	1.1800
6216	80	140	26	26	2	72500	53000	1.4000
6217	85	150	28	28	2	83500	64000	1.7900
6218	90	160	30	30	2	96000	71500	2.1500
6219	95	170	32	32	2.1	109000	82000	2.6200
6220	100	180	34	34	2.1	122000	93000	3.1400
6221	105	190	36	36	2.1	133000	104000	3.6600
6222	110	220	38	38	2.1	144000	117000	4.4400
6224	120	215	40	40	2.1	145000	118000	5.1100
6226	130	230	40	40	3	167000	146000	5.8200
6228	140	250	42	42	3	166000	150000	7.4700
6230	150	270	45	45	3	176000	168000	9.4100
6232	160	290	48	48	3	185000	186000	15.0000
6234	170	310	52	52	4	212000	224000	16.5000
6236	180	320	52	52	4	256000	279000	17.8000
6238	190	340	55	55	4	265000	320000	23.0000
6240	200	360	58	58	4	288000	335000	24.8000
6244	220	400	65	65	4	297000	365000	36.5000
6248	240	440	72	72	4	360000	470000	53.9000

Precision Class

Standard	Precision Class
GB/T307.1	P0	P6	P5	P4
IS0492	CLASS0	CLASS6	CLASS5	CLASS4
AFBMA STD.20	ABEC1	ABEC3	ABEC5	ABEC7

Bearing Material

Chrome Steel: Chemical Composition of Chrome Steel，According to customer needs, stainless steel bearing materials avaiable

Steel No	Chemical Composition%
Steel No	C	Si	Mn	P	S	Cr
GCr15	0.95-1.05	0.15-0.35	0.20-0.40	≤0.027	≤0.02	1.30-1.65

The Interchange of Chrome Steel No.

Country	China	ISO	U.S.A	Germany	Japan	Sweden
Bearings Steel No.	GCr15	683/VXⅡ	(AISI)52100	(DIN)100Cr6	（Jis）SUJ2	SKF3

Professional manufacture of Deep Groove Ball Bearing 62 Series.

Years Of Experience

We are an international custom Deep Groove Ball Bearing 62 Series suppliers and OEM/ODM Deep Groove Ball Bearing 62 Series company, specialized in the manufacturing deep groove ball bearing. Not only advanced automated production equipment, strict enterprise management, excellent talent team, and strong technology, rigorous process, but also we have a large number of precision grinding machine, mainly use high-quality bearing steel "GCr15" as raw material, and low-carbon alloy steel as attached. The first inspection, Operator self-inspection, inspect all the sizes; Inspect sampling, factory finished product testing and other processes, custom Deep Groove Ball Bearing 62 Series quality has been Strict controlled. Our quality goal is the pursuit of excellence, achieve customer satisfaction.
We have professional design, development and manufacture of Deep Groove Ball Bearing 62 Series and deep groove ball bearings. Our leading products are widely used in micro-electromechanical, household appliances, electric fans, washing machines, motorcycles, electric vehicles, medical equipment, sports equipment, textile and agricultural machinery, and process decorations, sliding doors and windows, children′s toys, trolleys, Package, skates, scooters, fitness equipment, various types of machinery sector!
