Home / Product / 16000 Series Deep Groove Ball Bearing / 16001 2RS High Speed Electric Bicycle Bearings Thin Walled Ball Bearing 12x28x7mm

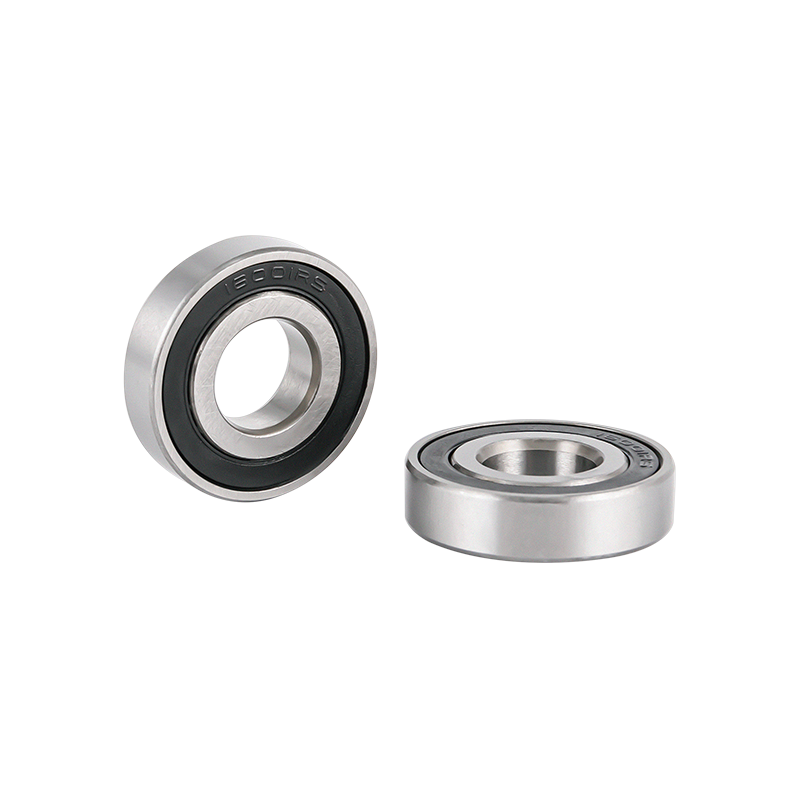

16001 2RS High Speed Electric Bicycle Bearings Thin Walled Ball Bearing 12x28x7mm

Specification

MODEL	SIZE					BASIC RATED LOAD		WEIGHT (reference) kg
	INNER DIAMETER(d) mm	OUTER DIAMETER(D) mm	WIDTH		CHAMFER(r) mm	DYNAMIC Cr N	STATIC Cor N
	INNER DIAMETER(d) mm	OUTER DIAMETER(D) mm	OPEN TYPE mm	SHIELD TYPE mm	CHAMFER(r) mm	DYNAMIC Cr N	STATIC Cor N
16100	10	28	8	8	0.3	5110	2380	0.0220
16101	12	30	8	8	0.3	5110	2380	0.0230
16001	12	28	7	7	0.3	4320	2250	0.0240
16002	15	32	8	8	0.3	5590	2840	0.0250
16003	17	35	8	8	0.3	6000	3250	0.0320
16004	20	42	8	8	0.3	6340	3790	0.0500
16005	25	47	8	8	0.3	6940	4600	0.0600
16006	30	55	9	9	0.3	9950	6530	0.0850
16007	35	62	9	9	0.3	10820	7830	0.1100
16008	40	68	9	9	0.3	11590	9130	0.1250
16009	45	75	10	10	0.6	11830	9880	0.1700
16010	50	80	10	10	0.6	12510	11100	0.1800
16011	55	90	11	11	0.6	19300	16300	0.2600
16012	60	95	11	11	0.6	20000	17500	0.2800
16013	65	100	11	11	0.6	21200	17800	0.3000

Precision Class

Standard	Precision Class
GB/T307.1	P0	P6	P5	P4
IS0492	CLASS0	CLASS6	CLASS5	CLASS4
AFBMA STD.20	ABEC1	ABEC3	ABEC5	ABEC7

Bearing Material

Chrome Steel: Chemical Composition of Chrome Steel，According to customer needs, stainless steel bearing materials avaiable

Steel No	Chemical Composition%
Steel No	C	Si	Mn	P	S	Cr
GCr15	0.95-1.05	0.15-0.35	0.20-0.40	≤0.027	≤0.02	1.30-1.65

The Interchange of Chrome Steel No.

Country	China	ISO	U.S.A	Germany	Japan	Sweden
Bearings Steel No.	GCr15	683/VXⅡ	(AISI)52100	(DIN)100Cr6	（Jis）SUJ2	SKF3

Professional manufacture of 16001 2RS High Speed Electric Bicycle Bearings Thin Walled Ball Bearing 12x28x7mm.

Years Of Experience

We are an international custom 16001 2RS High Speed Electric Bicycle Bearings Thin Walled Ball Bearing 12x28x7mm suppliers and OEM/ODM 16001 2RS High Speed Electric Bicycle Bearings Thin Walled Ball Bearing 12x28x7mm company, specialized in the manufacturing deep groove ball bearing. Not only advanced automated production equipment, strict enterprise management, excellent talent team, and strong technology, rigorous process, but also we have a large number of precision grinding machine, mainly use high-quality bearing steel "GCr15" as raw material, and low-carbon alloy steel as attached. The first inspection, Operator self-inspection, inspect all the sizes; Inspect sampling, factory finished product testing and other processes, custom 16001 2RS High Speed Electric Bicycle Bearings Thin Walled Ball Bearing 12x28x7mm quality has been Strict controlled. Our quality goal is the pursuit of excellence, achieve customer satisfaction.
We have professional design, development and manufacture of 16001 2RS High Speed Electric Bicycle Bearings Thin Walled Ball Bearing 12x28x7mm and deep groove ball bearings. Our leading products are widely used in micro-electromechanical, household appliances, electric fans, washing machines, motorcycles, electric vehicles, medical equipment, sports equipment, textile and agricultural machinery, and process decorations, sliding doors and windows, children′s toys, trolleys, Package, skates, scooters, fitness equipment, various types of machinery sector!
